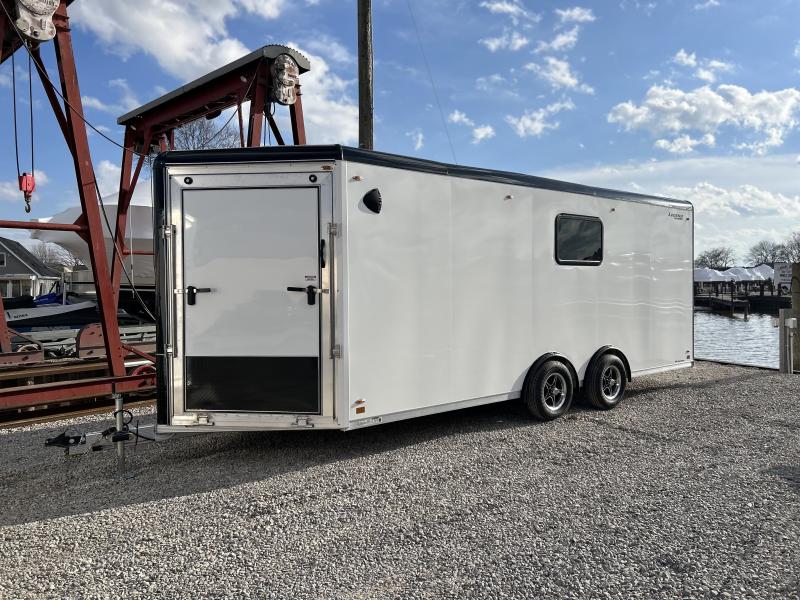

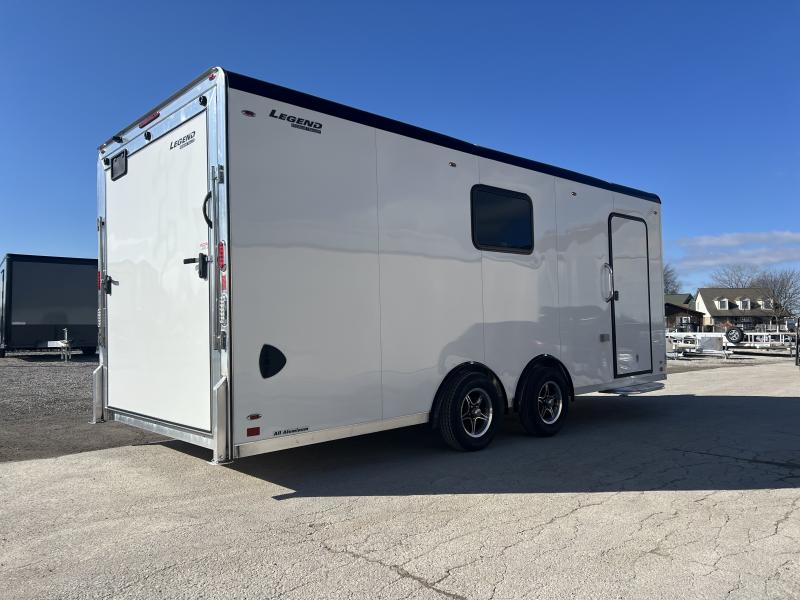

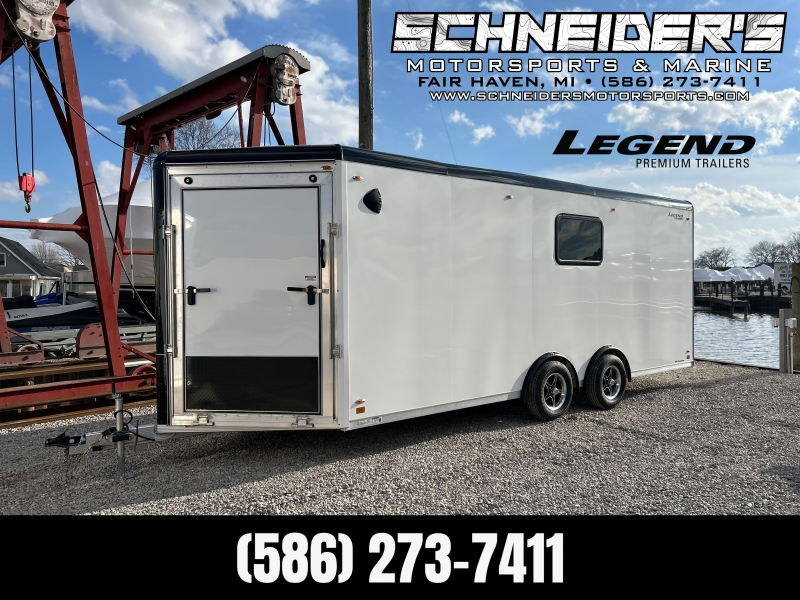

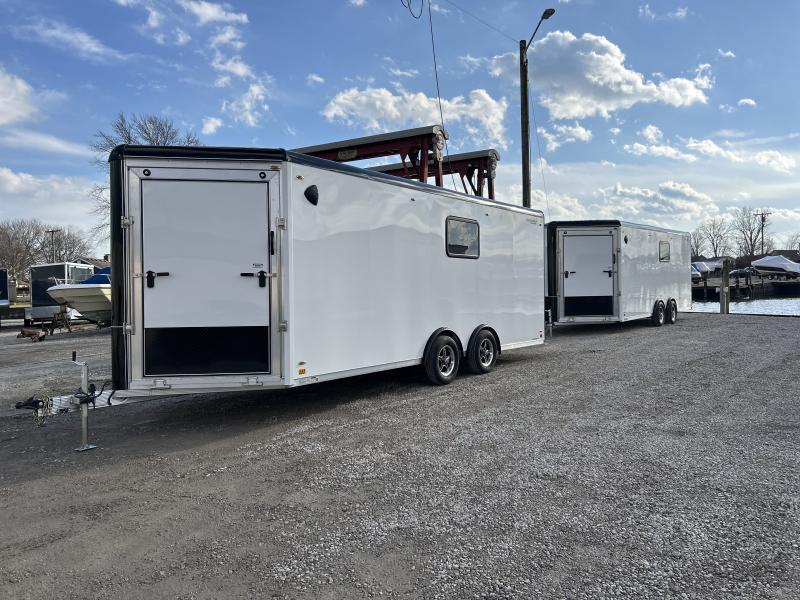

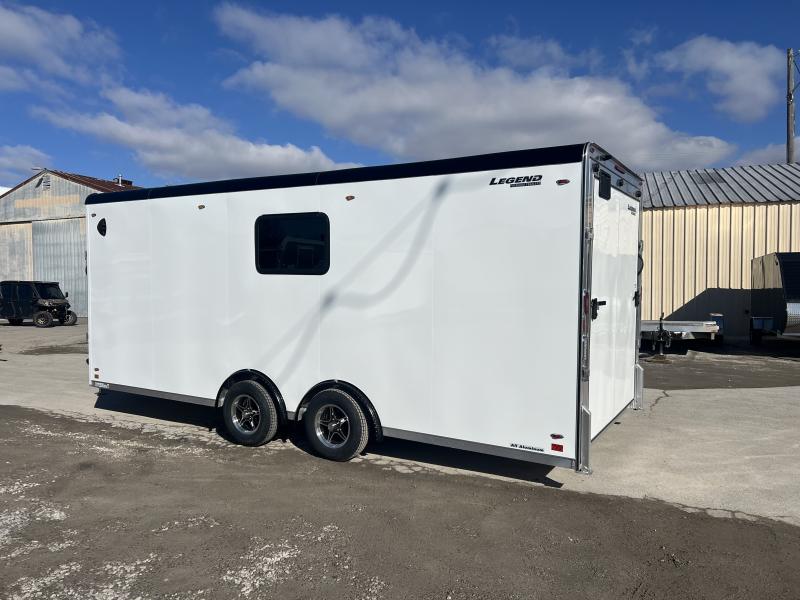

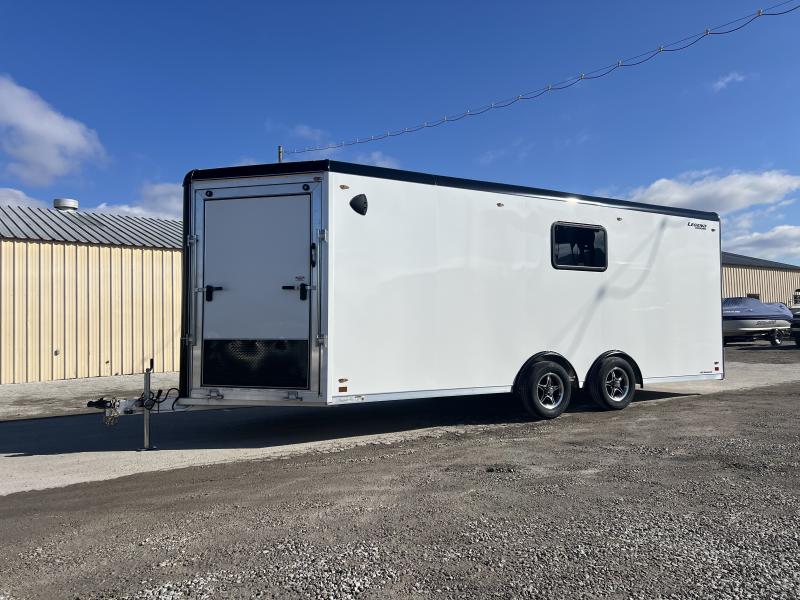

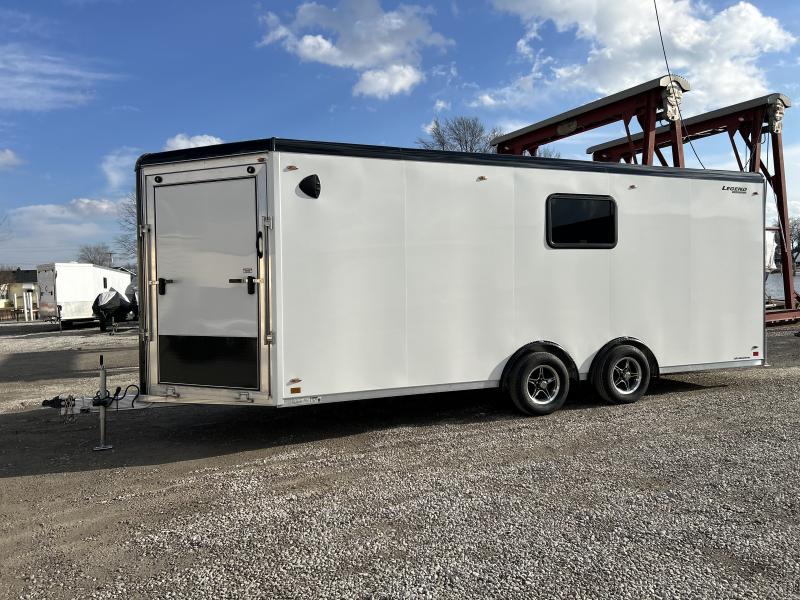

2024  Legend  8X24 Deluxe (Tandem Axle) Snowmobile/ATV Trailer  - 10648

Additional Options Installed on 2024 8X24DSTA35:

WHITE

HEIGHT: 12" ADDITIONAL 90" INTERIOR HEIGHT

SPREAD AXLE: TANDEM SPREAD AXLE

BLACK OUT PACKAGE: STANDARD

STABILIZER: (QTY 1) 20" DELUXE REAR STABILIZER JACKS (WELDED)

RAMP FLAP: FRONT AND REAR SPORT

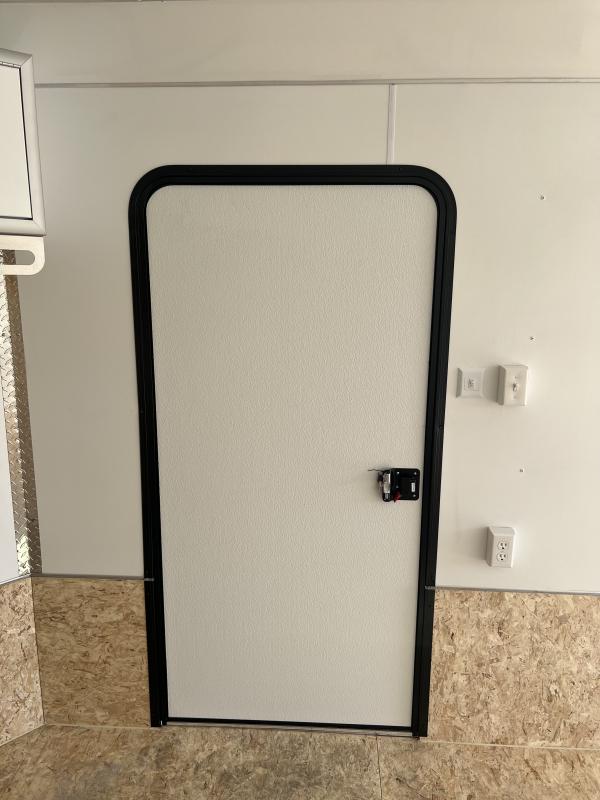

SIDE DOOR: RADIUS 36X74 CURBSIDE / BLACK FRAME

SIDE DOOR STEP: (QTY 1) SLIDE-OUT STEP

INSULATION: WALLS AND CEILING (BUBBLE FOIL)

SPRING COVERS: FRONT AND REAR WHITE ALUMINUM (DELUXE)

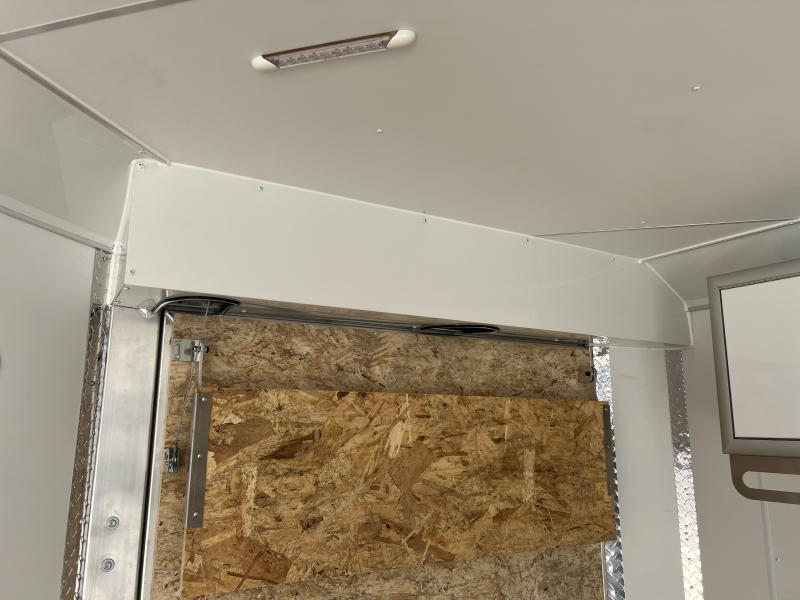

DOME LIGHTS: (QTY 8) 8" LED DOME LIGHTS W/12V SWITCH

CLEARANCE LIGHTS: (QTY 2) ADDITIONAL LED CLEARANCE LIGHTS

BACK UP LIGHTS: (QTY 1) LED BACKUP LIGHTS

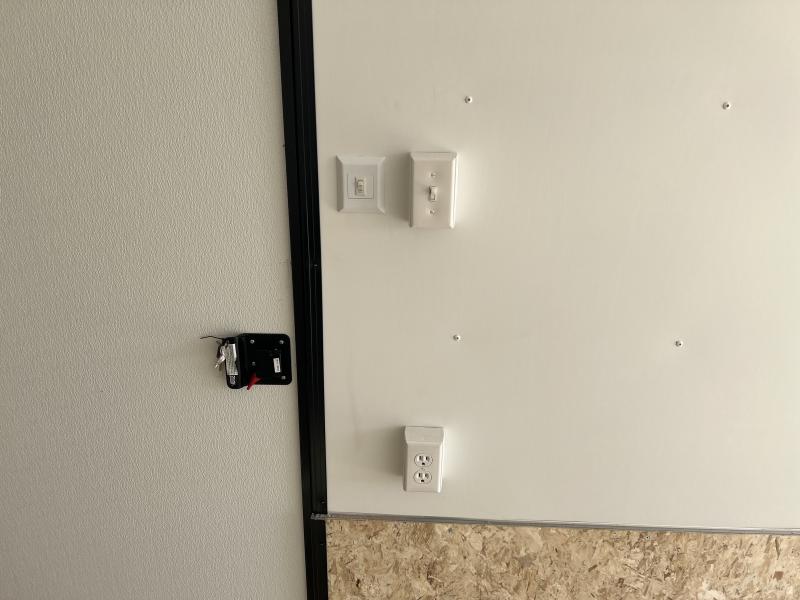

110V PACKAGE: BRONZE

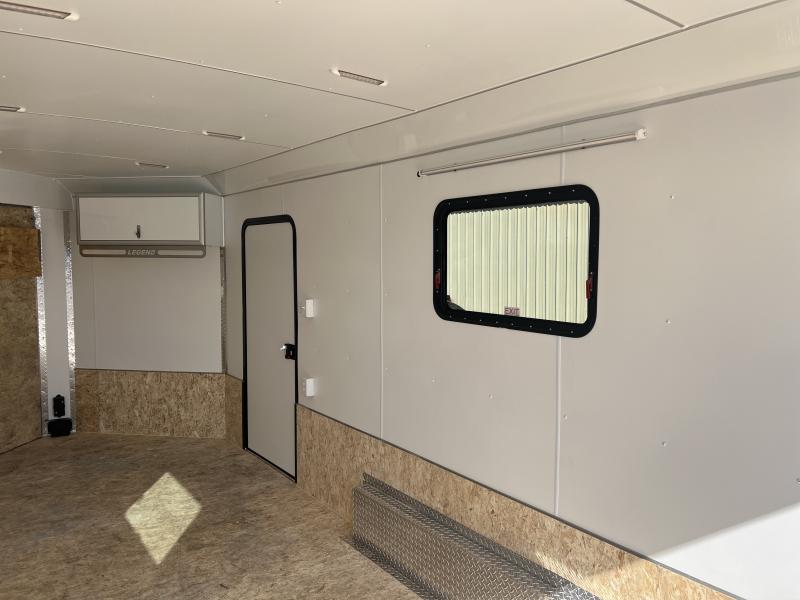

WINDOWS: (QTY 2) 36" X 22" EGRESS WINDOWS

HIGHLIGHTS:

24" ATP Stone Guard

3" x 6" Extruded Alum Triple Tongue (32")

16" Bright Polished Mesa Skirting

ATP Wheel Boxes & Flares

Lighted Side Entry Door Grab Handle

ATP Interior Trim

One Piece All-Aluminum Roof

Stainless Steel Door Hardware

Key Lockable Hasps (Ramp Only)

Bonded Smooth Exterior

Bright Polished Accent Divider Strip w/ Decal

Bright Polished Radius 4' V-Nose & Roof Rails

RUNNING GEAR:

Axle Type E-Z Lube Torsion

Axle Size 3,500#

Brakes 2 Electric Brakes

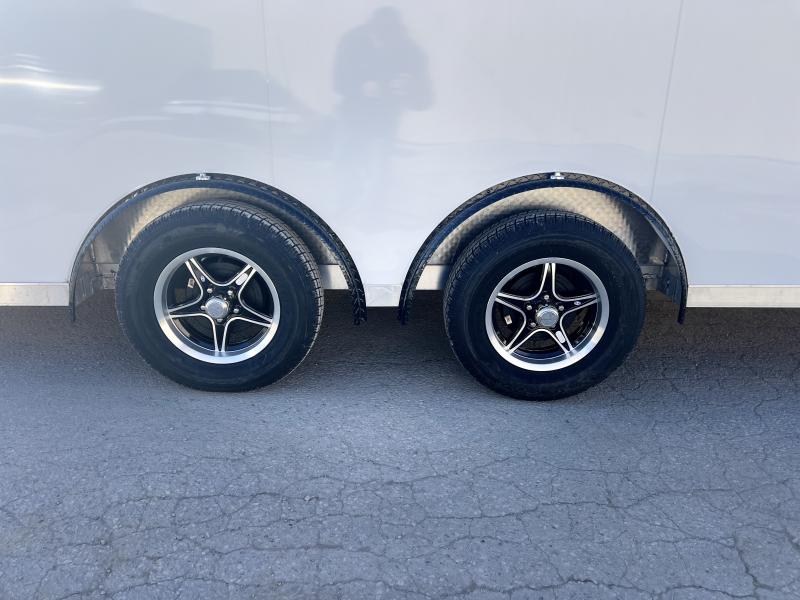

Tire Size ST205/75R15

Wheels Gunmetal or Black Aluminum

STRUCTURAL:

Cross Members Size 2" x 3" Tube

Cross Member Spacing 16" OC

Frame 2" x 4" Perimeter Tube

Roof Bow Size 1"x1" Radius Tube

Roof Bow Spacing 24" OC w/ Stringers

Roof Profile Radius Roof

Roof Type One Piece All Aluminum

Wall Stud Size 1" x 1.5" Tube

Wall Stud Spacing 16"OC

FLOOR/SKINS:

Floor 3/4" Engineered Wood Panel

Interior Walls White Vinyl & 24" Wood Kickplate

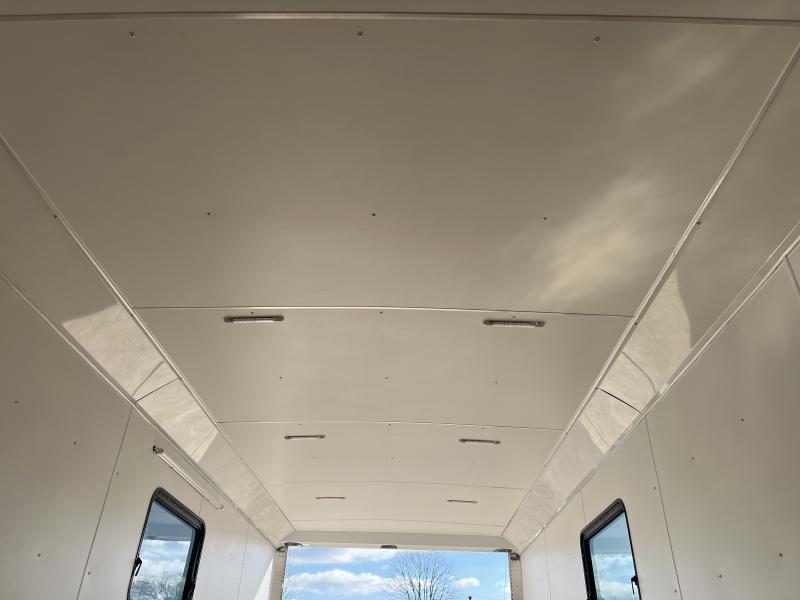

Ceilings White Vinyl

Exterior Skin Bonded, Screwless, .030 Alum., Divider Strip w/ Decal

ELECTRICAL:

Dome Lights 2-12v Rectangle LED Domes w/ Wall Switch

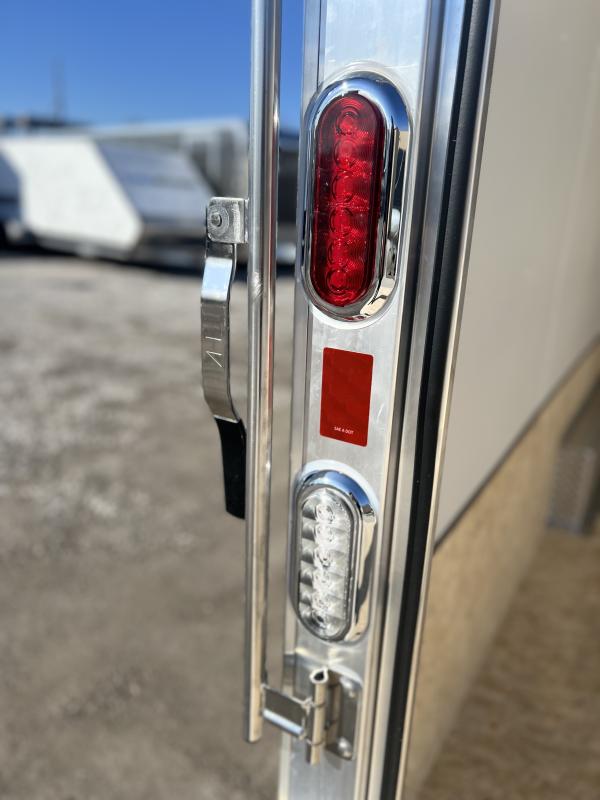

Exterior Lighting Type Surface Mount LED

COMPONENTS:

Coupler 2 5/16" Straight

Jack 2,000# Top-Wind Set Back Jack w/ Foot

Fenders ATP Fenders

Side Door 30" Curbside RV w/ Flush Lock & Alum. Holdback (Black Frame)

Storage 44" Deluxe Overhead Cabinet w/ Clothes Bar

Tie Downs Optional

Vents 2- Plastic Side Air Vents

SPECS:

Model 8x24

Overall Length

Overall Width 102"

Overall Height 101"

Interior Box Length + V 20'+4'

Interior Box Width 93"

Interior Height 78"

Width Between Fenders 84"

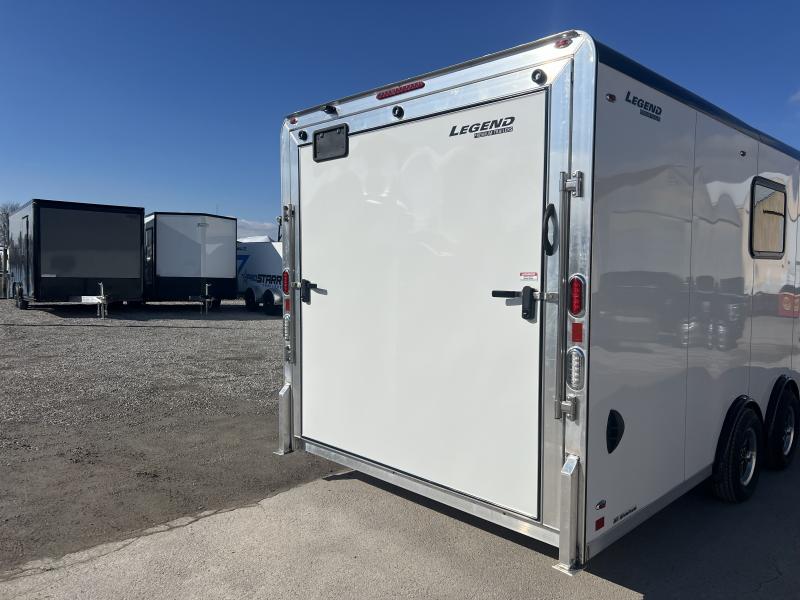

Rear Door Type Ramp Door

Rear Door Height 73"

Rear Door Width 85"

Front Door Type Ramp Door

Front Door Height 68"

Front Door Width 54"

COMMON USES:

Snowmobiles, ATV/UTV, Powersports, Lawn & Landscape, Construction, General Cargo

MANUFACTURERS LIMITED WARRANTY:

Structural: Limited Lifetime

Aluminum Roof: 25 Years
